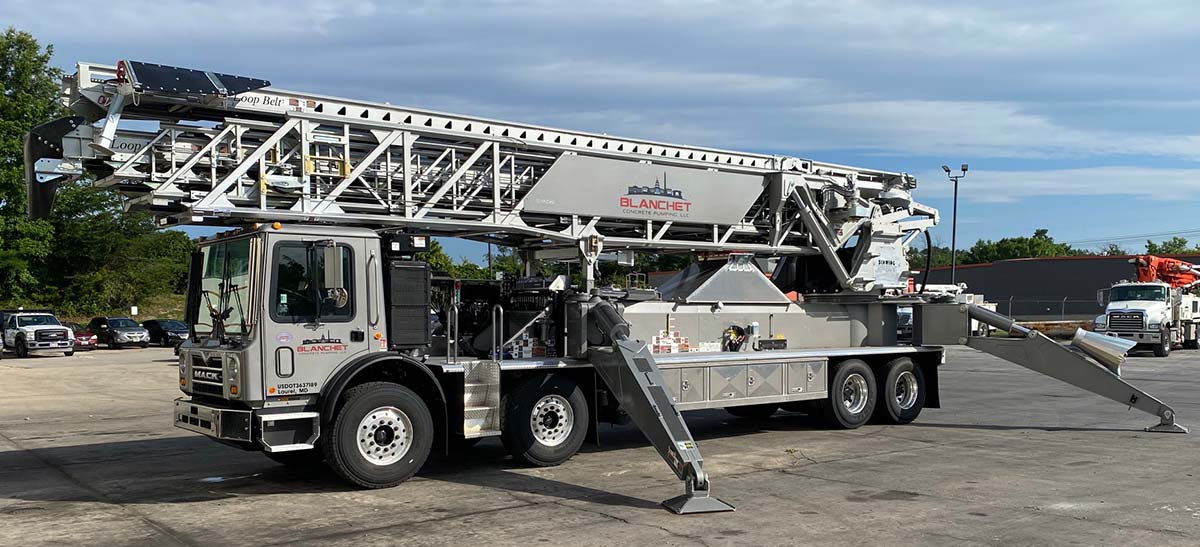

Schwing 33T4-20 Loop Belt
Offering a 107′ 1″ (38.56m) horizontal reach, the 33T4-20 features a patented feed conveyor, hinge and transfer that provide superior material flow in high capacity and difficult mix applications.
Specifications
Conveyors
| Conveyor horizontal reach | ||
| Maximum at 0° | 107′ 1″ | 32.64 m |
| Maximum at 30° | 93′ 4″ | 28.45 m |
| Conveyor belt width | 20″ | 508 mm |
| Feed conveyor length | 40′ | 12.19 m |
| Feed conveyor belt width | 20″ | 508 mm |
| Discharge height from grade | ||
| Maximum at 30° | 61′ 1″ | 18.62 m |
| Maximum at -12° | 14′ 10″ | 4.52 m |
| Main & feed conveyors | ||
| Observed capacity at 0° | 8.40 cu yds/min | 4.47 cu m/min |
| Observed capacity at 25° | 5.33 cu yds/min | 3.42 cu m/min |
Outriggers
| Net reach beyond outriggers | ||
| Maximum at 0° | 100′ 11″ | 30.76 m |
| Maximum at 30° | 87′ 2″ | 26.57 m |
| Outrigger spread L-R front hydraulic out | 26′ 1″ | 7.95 m |
| Outrigger spread L-R rear hydraulic out | 27′ 10″ | 8.48 m |
| Outrigger spread front to rear | 29′ 11″ | 9.12 m |
General Specifications
| Water tank capacity | 150 gal | 567.8 L |
| Hydraulic tank capacity (with cooler) | 180 gal | 681.4 L |

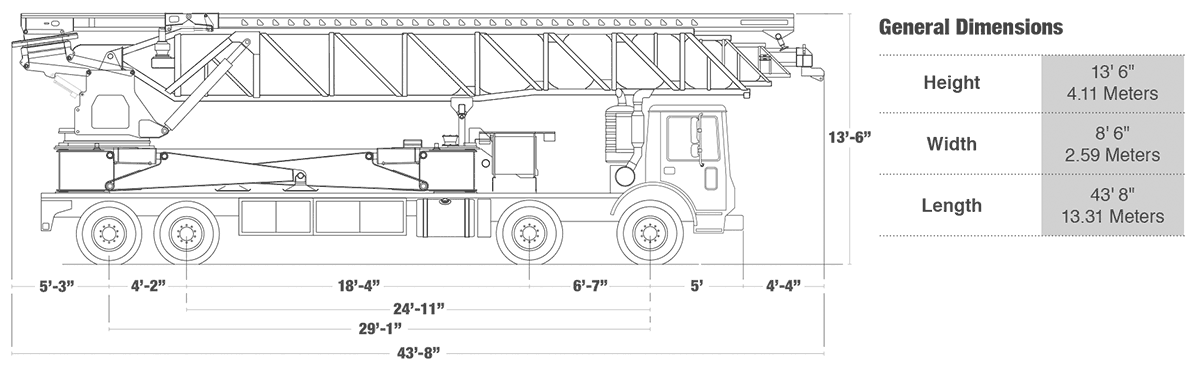

Truck Specifications
| Weight | 21,000 LB | 9,525 kg |
| Engine horsepower | 425 HP | 317 kW |
| Wheelbase | 324″ | 8,230 mm |
| Cab height | 104″ | 2,642 mm |
| Fuel tank capacity | 80 gal | 303 L |

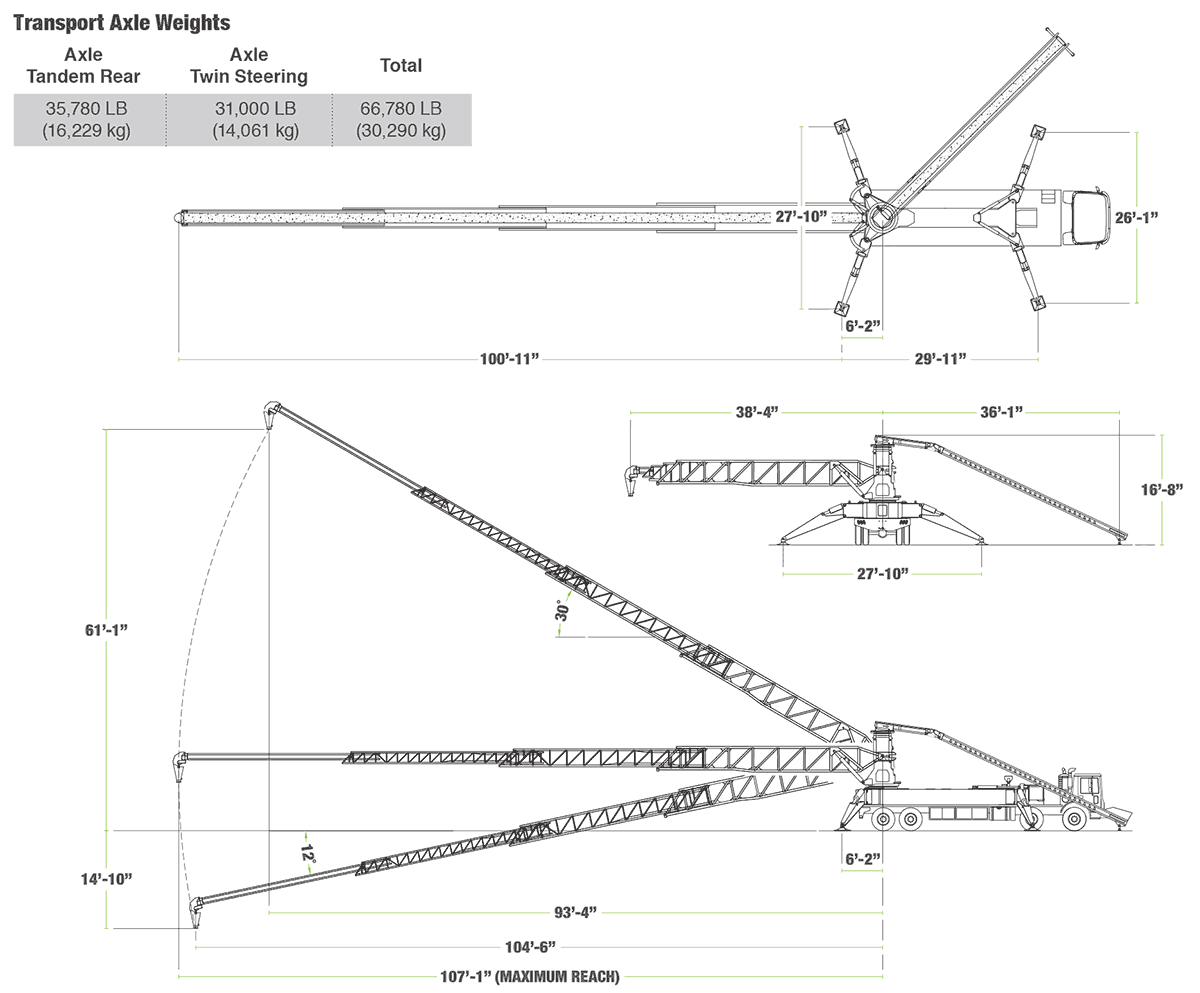

Range Diagram
