Schwing KVM 32/SPB 28 Placing Boom
The Schwing SPB 28 is a full articulation, Roll & Fold® design 4-section boom that reaches 93′ and rotates 370 degrees.
Specifications
| Reach | 93 feet |
| Reach Below Grade w/Tip Hose | 79 feet |
| Pipeline Diameter | 5 inch |
| Boot Type / Sections | Full articulation, Roll & Fold® / 4 |
| Boom Rotation | 370 degrees |
| Picking Weight: Boom | 13,700 lbs. |

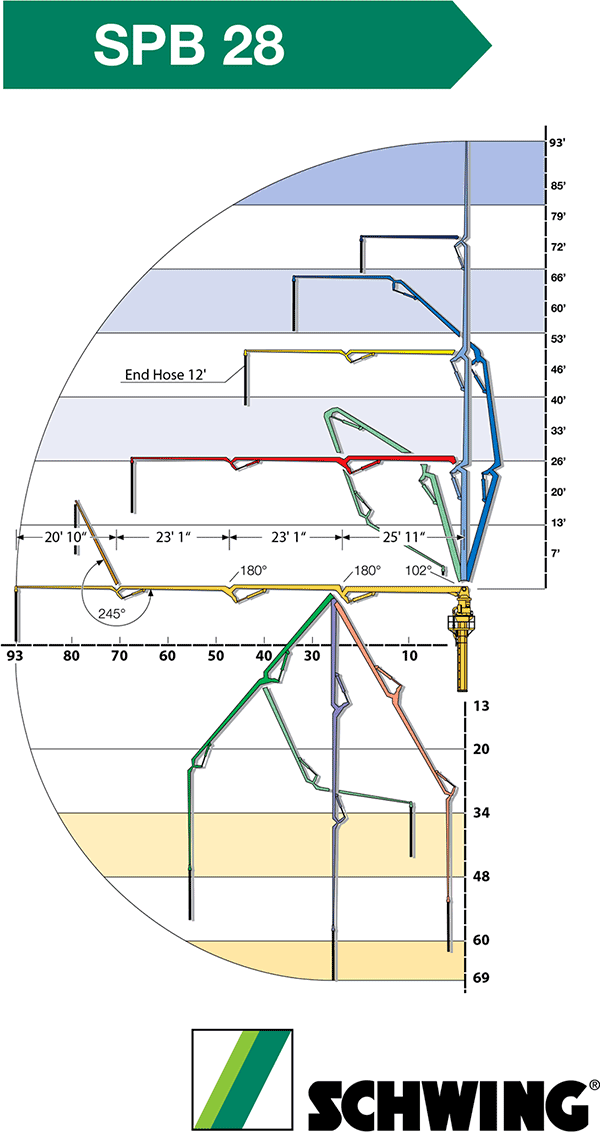

Range Diagram
