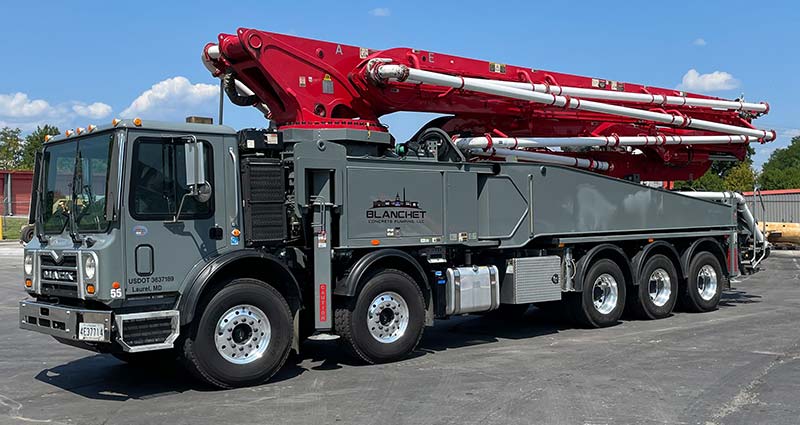

Putzmeister 51Z Concrete Pump
The Putzmeister 51Z concrete pump combines proven components with the latest developments to reduce operating costs, increase operator safety and offer flexibility to meet job site needs.
Specifications
| Technical data – Boom | ||
|---|---|---|
| Type of folder | 5-arm roll Z-folding (RZ) | |
| Vertical reach | 164′ 4″ | 50.1m |
| Horizontal reach | 147′ 3″ | 44.9m |
| Depth of reach | 115′ 1″ | 35.1m |
| Unfolding height | 33′ 5″ | 10.2m |
| End hose length | 9′ 8″ | 3m |
| Technical data – General | ||
|---|---|---|
| Support width* | front / rear | |
| Normal | 31′ 8″ / 35′ 8″ | 9.7m / 10.9m |
| OSS | 20′ 0″ / 25′ 9″ | 6.1m / 7.9m |
| Overall length | 44′ 6″ | approx. 13.6m |
| Height | 13′ 1″ | below 4.0m |

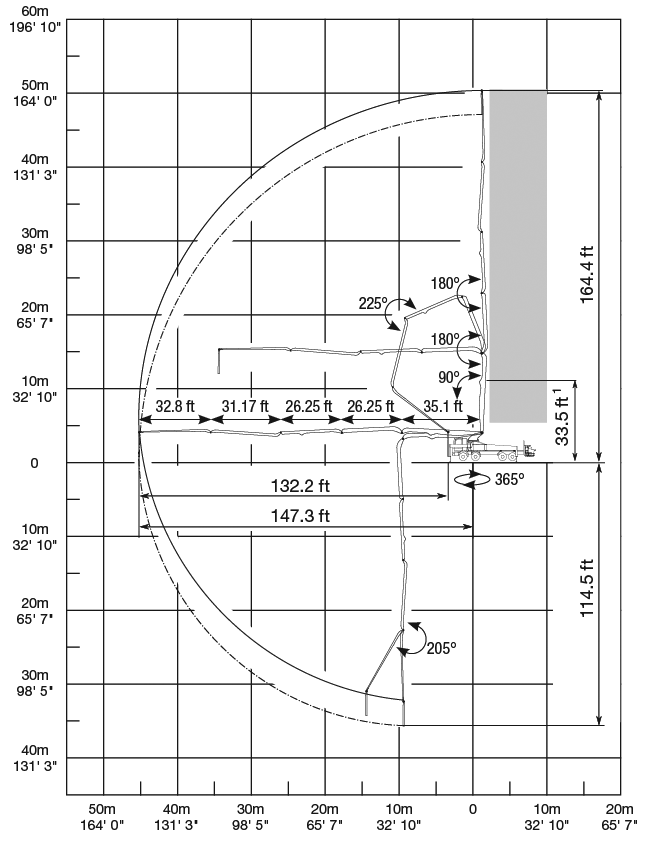

Range Diagram

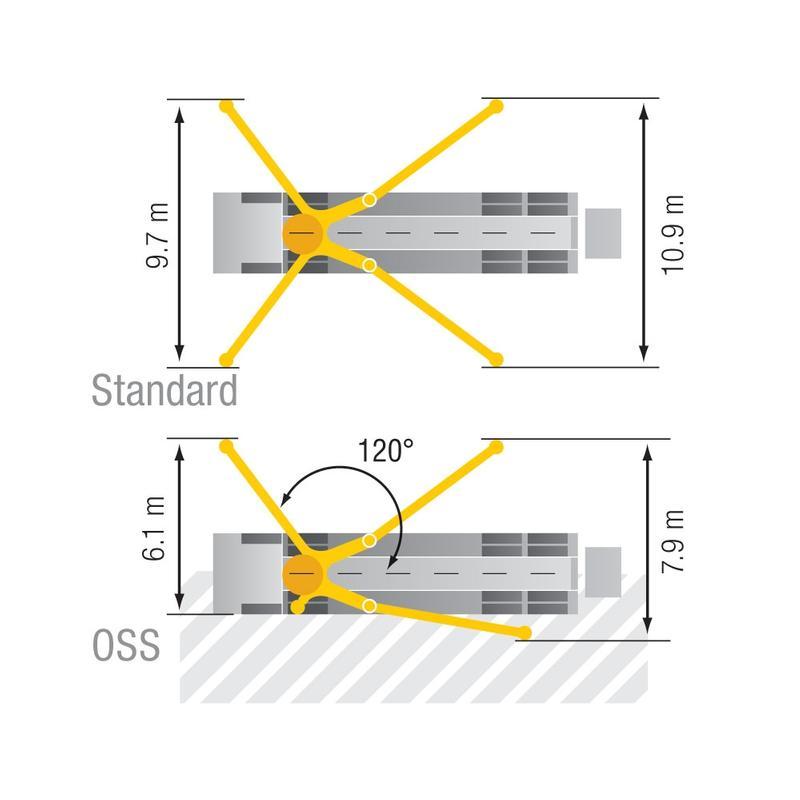

Outrigger Spread
