Schwing S 51 SX Concrete Pump

11 Sep 2024

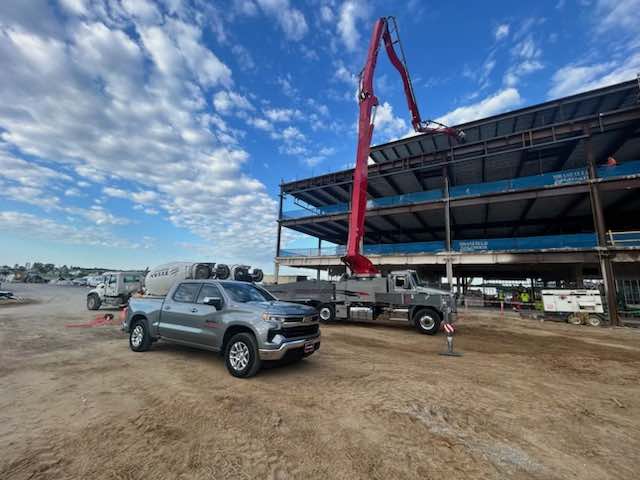

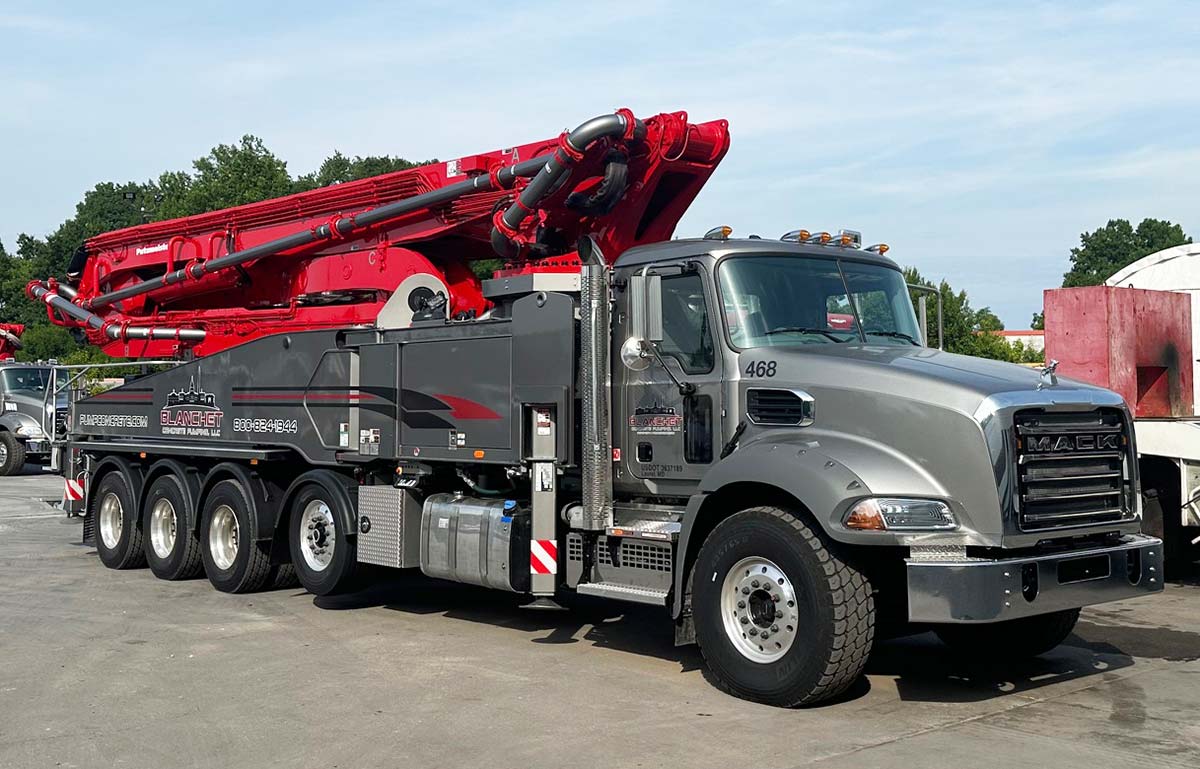

The Schwing S 51 SX Truck-Mounted Concrete Pump features a 5-section “Roll and Fold” placing boom, full articulation, and 147′ 4″ horizontal reach.

Specifications

	U.S.

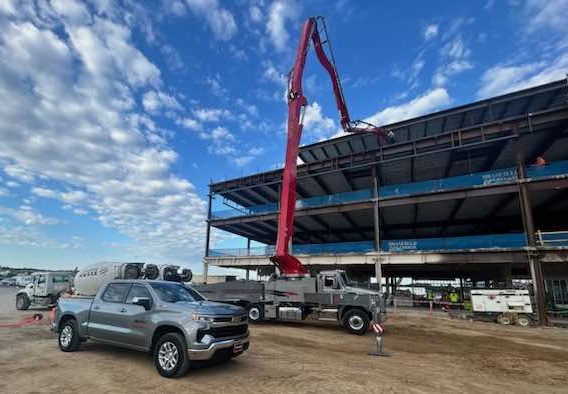

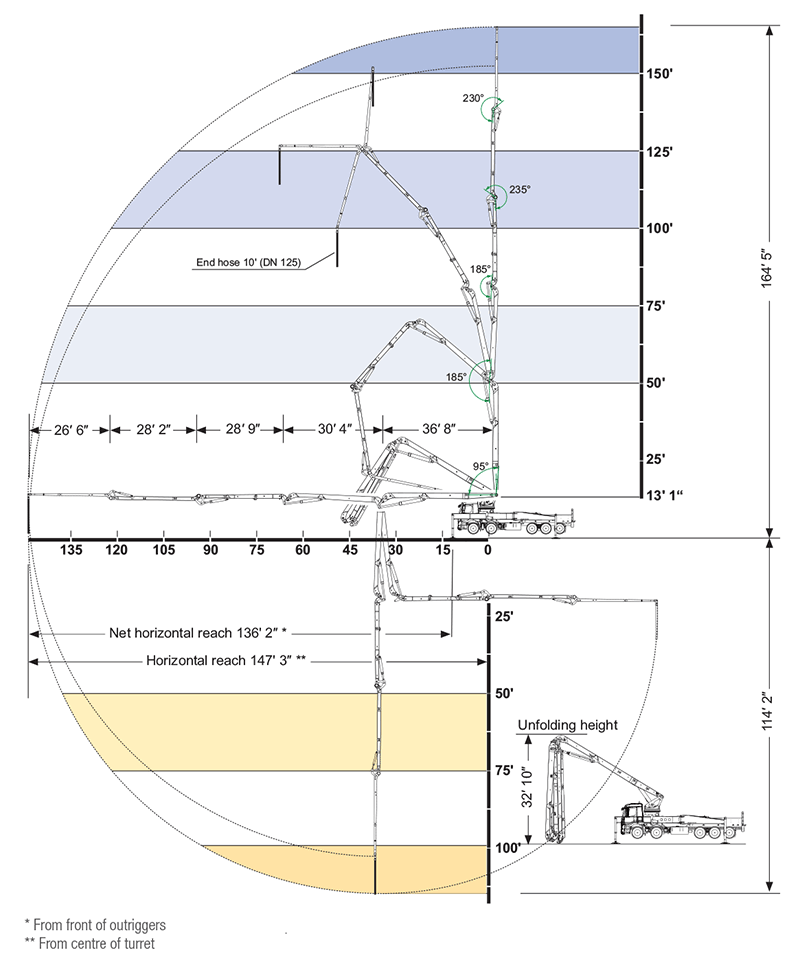

Vertical Reach	164′ 5″
Horizontal Reach	147′ 4″
Slewing Range	730 degrees (365 left & 365 right)
Design	Five Section RZ5 Articulating Roll & Fold, Z-Boom
Section Lengths
Main Section	36′ 8″
Second Section	30′ 4″
Third Section	28′ 9″
Fourth Section	28′ 2″
Tip Section	26′ 6″
Minimum Unfolding Height	32′ 10″
Boom Section Working Range
Main Section	95 degrees
Second Section	185 degrees
Third Section	185 degrees
Fourth Section	235 degrees
Tip Section	230 degrees
Boom Pipeline	125mm, Super 3000, Metric Ends
Deck Pipeline	125mm, Super 3000, Metric Ends
Boom End Hose	10′ Coupled One End – 2940 PSI
Pipeline Clamp Size	5-1/2″ raised end
Outriggers
Design	Super X Outriggers, Fully Hydraulic
Outrigger Spread
Front (side to side)	29′ 5″
Rear (side to side)	32′ 8″
Length	33′ 2″
Max. Outrigger Load
Front	66,318 lbs.
Rear	66,318 lbs.
Outrigger Footplate Dimensions
Front	Ø10.35″
Rear	Ø14.17″
Max. Outrigger Soil Pressure
Front	788 psi (w/o Dunnage) 107 psi w/Dunnage)
Rear	420 psi (w/o Dunnage) 107 psi (w/Dunnage)

PUMP SPECIFICATIONS- 2525H-5 120/85 MPS
	U.S.
Theor. Concrete Output	213 cu yds/h
Max. Pressure on Concrete	1169 psi
Max. Strokes Per Minute	22
Material Cylinder Diameter	10″
Material Cylinder Stroke Length	98 in
Differential Cylinder Diameter	4.7″
